Adhesive Film

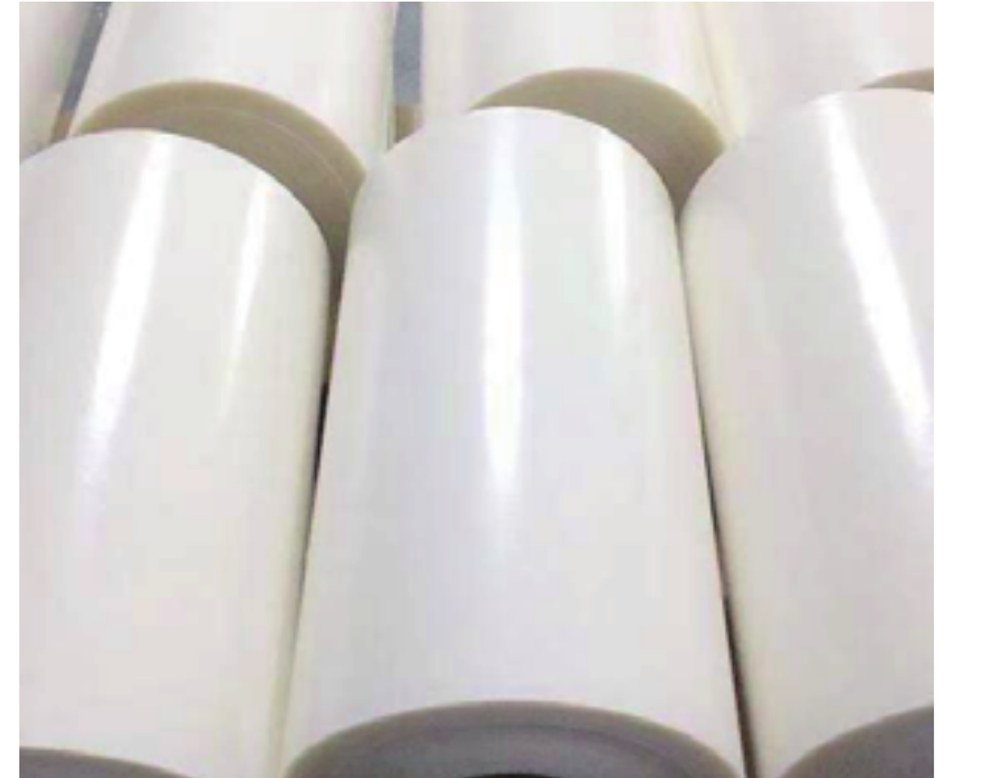

High-Temperature Structural Adhesive Film
Model: ArmertEX AD-58
Specifications
| Adhesive type | Modified epoxy film with knitted nylon carrier |
|---|---|
| Areal weight | 250±20 g/m² |
| Nominal thickness | 0.2 mm |
| Cure cycle | 173–175°C × 2 h; 1–4°C/min heat-up |
| Typical lap shear strength | 52.0 MPa @ RT; 49.2 MPa @ -55°C; 32.7 MPa @ 150°C |
| Typical floating roller peel strength | 10.0 kN/m @ RT; 7.26 kN/m @ -55°C; 10 kN/m @ 150°C |
| Typical honeycomb climbing drum peel | 232 N·mm/mm (W); 173 N·mm/mm (L) @ RT |
| Typical honeycomb flatwise tensile strength | 11.6 MPa @ RT; 7.92 MPa @ 150°C |
| Storage | 10–35°C, RH ≤70%; 9 months at room temperature or 2 years at -18°C |
| MOQ | Confirmed with quotation |
| Lead time | Confirmed with quotation |
| Packaging | Release-material interleaved film, sealed and packed for shipment; storage and shipment conditions confirmed with quotation |
Applications
- Metal, non-metal and composite panel bonding
- Panel-to-metal or non-metal honeycomb-core bonding
ArmertEX appears in manufacturer documentation as the product brand for AD-58.
AD-58 is a high-temperature structural film adhesive for panel-to-panel and panel-to-honeycomb-core bonding.
All listed figures are manufacturer-stated typical values, not acceptance limits or third-party certification. Aluminum test coupons stated in the handbook were phosphoric-acid anodized; confirm the applicable test method, material configuration and acceptance criteria for the project before quotation.
Include your required specification, test method and technical-document requirements in the inquiry so the selected grade can be confirmed.
